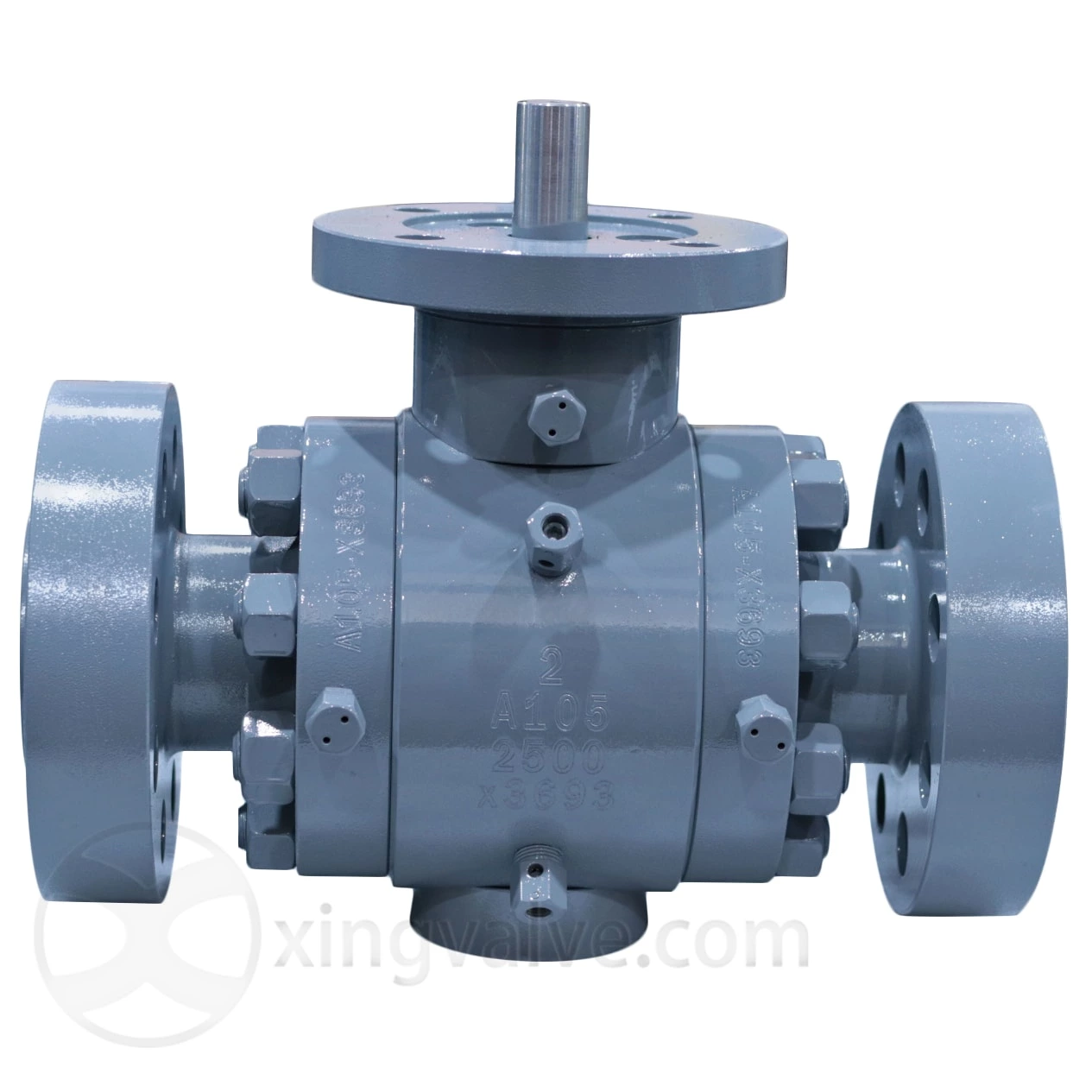

High Pressure Ball Valve

Specification parameters Name High Pressure Ball Valve Size 2" ~ 36" (DN50~DN900) Pressure 150LB ~ 2500LB (PN10~PN420) Temperature -29°C~+250°C Applications Applicable to petroleum, chemical, metallurgy, light industry, power station, urban construction water supply, low temperature working conditions and long-distance pipelines such as oil, water, gas and natural gas Design S
Size Range
2" ~ 36" (DN50~DN900)
Temperature Range
-29°C~+250°C
Pressure Rating
150LB ~ 2500LB (PN10~PN420)
End Connections
Norsok L005 compact flange Freudenberg/ Grayloc compact flange

Specification parameters

Name High Pressure Ball Valve
Size 2" ~ 36" (DN50~DN900)
Pressure 150LB ~ 2500LB (PN10~PN420)
Temperature -29°C~+250°C
Applications Applicable to petroleum, chemical, metallurgy, light industry, power station, urban construction water supply, low temperature working conditions and long-distance pipelines such as oil, water, gas and natural gas

Design Specification:

Design Standards API6D, BS 5351, GB/T 12237
Structure length ASME B16.10, GB/T 12221
Flange Connection Standard ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Torsion welding standard ASME B16.25, GB/T 12234
Fire Protection Requirements API 6FA, API 607
Pressure test API 598,GB/T 13927, GB/T 26480
Temperature and Pressure Test ASME B16.34, GB/T 12224

Product introduction:

High-pressure forged steel ball valve is the experience of Xingfeng company's engineers and technicians in designing and manufacturing high-pressure valves for more than 20 years.

developed using the latest international technical standards. It is mainly used for long-distance pipeline transportation of oil and natural gas and urban gas pipeline system.

Because of the unique characteristics of long-distance pipeline valves, the design has taken into account its ability to withstand pipeline stress, as well as safety, weatherability, and long-term reliability. The valve operation mode includes manual-worm worm gear drive, pneumatic, electric, gas/liquid linkage and various special control forms.
