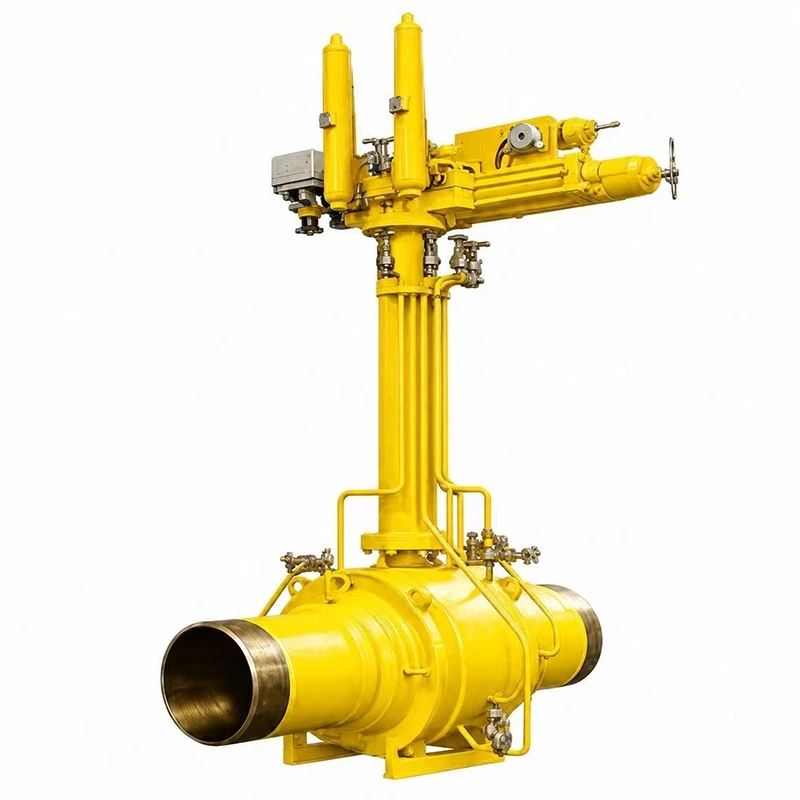

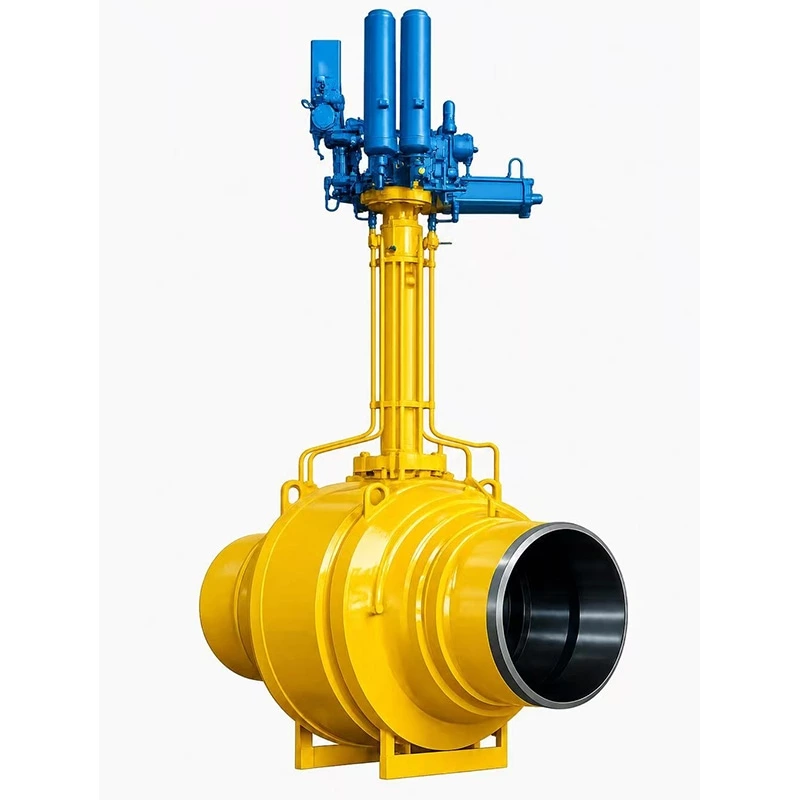

Ball Valve with Hydraulic Pnuematic Actuator
Ball Valve with Hydraulic Pnuematic Actuator, pressure up to PN150, size up to 48"
- Size Range
- 2" ~ 48" (DN50~DN1200)
- Temperature Range
- -29°C~+250°C
- Pressure Rating
- 150LB ~ 1500LB (PN10~PN100)
- Applications
- Applicable to petroleum, chemical, metallurgy, light industry, power station, urban construction water supply, low temperature working conditions and long-distance pipelines such as oil, water, gas and natural gas
Specification Parameters
| Name | Ball Valve (Fully Welded Body) |
| Size | 2" ~ 48" (DN50~DN1200) |
| Pressure range | 150LB ~ 1500LB (PN10~PN100) |
| Temperature | -29°C~+250°C |
| Drive Mode | Hydraulic Pnuematic Actuator |
| Applications | Applicable to petroleum, chemical, metallurgy, light industry, power station, urban construction water supply, low temperature working conditions and long-distance pipelines such as oil, water, gas and natural gas |
Design Specification:
| Design Standards | API6D, BS 5351, GB/T 12237 |
| Structure length | ASME B16.10, GB/T 12221 |
| Flange Connection Standard | ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592 |
| Torsion welding standard | ASME B16.25, GB/T 12234 |
| Fire Protection Requirements | API 6FA, API 607 |
| Pressure test | API 598,GB/T 13927, GB/T 26480 |
| Temperature and Pressure Test | ASME B16.34, GB/T 12224 |

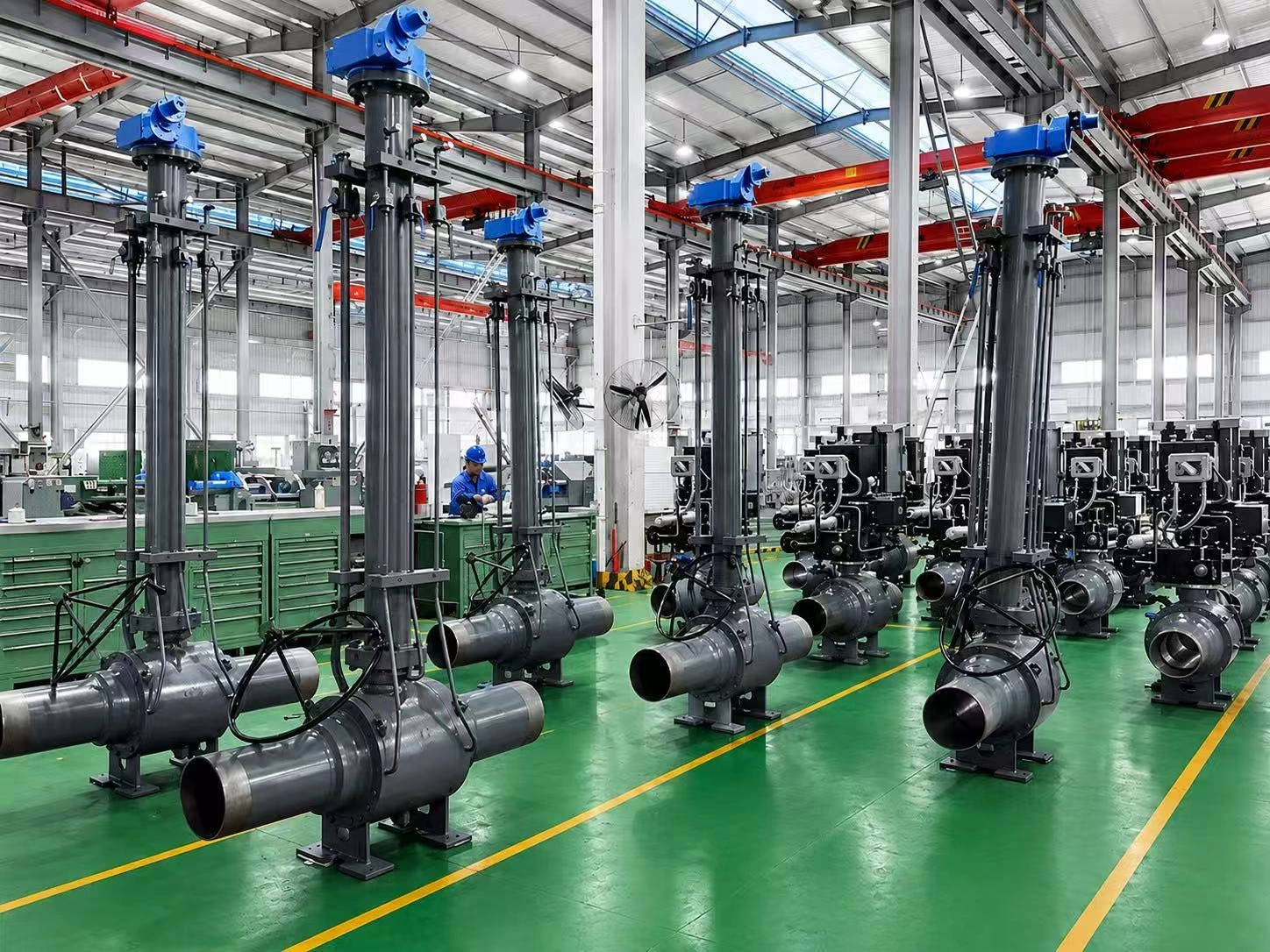

Factory Floor Photos :
Features:
1) Anti-fire safe design: API 6FA, API607
2) Anti-static device
3) Anti-blow out design
4) Free leakage of body Sealed construction
5) Low torque in operation
6) Emergency sealing
7) Automatic body cavity relief
