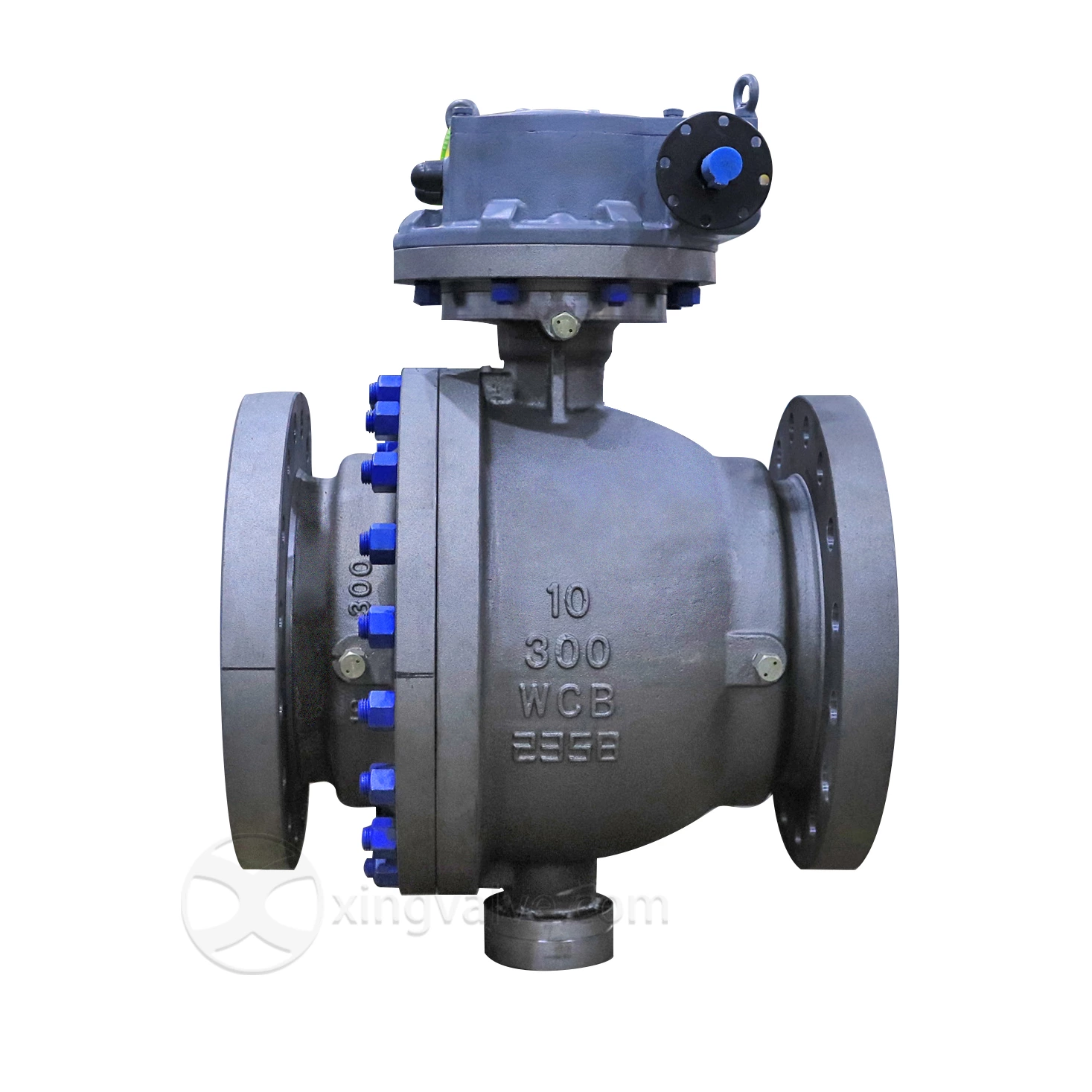

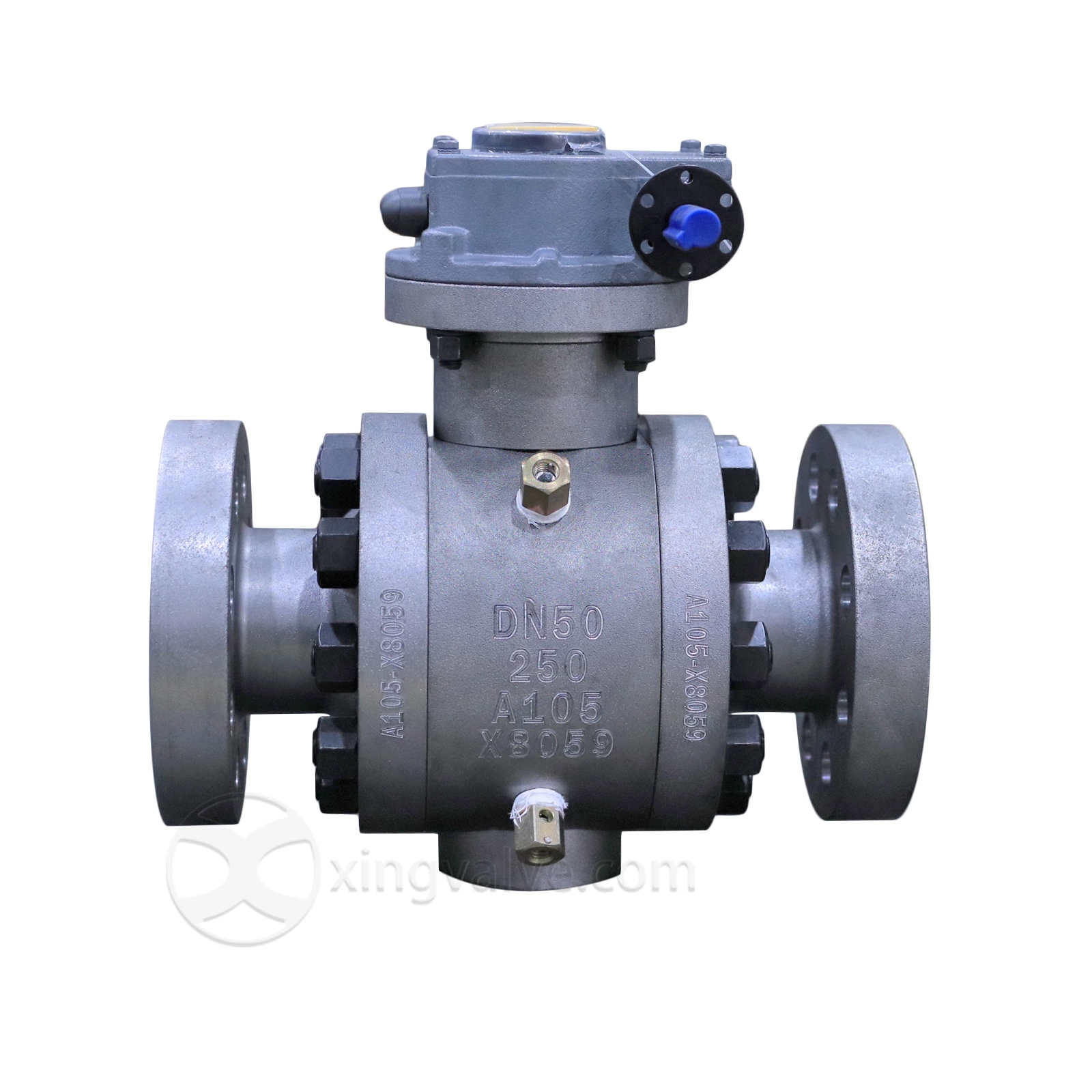

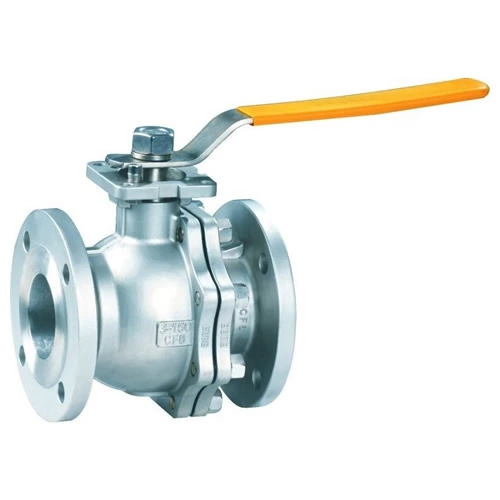

Flanged Ball Valve

Design Standard
API6D, API 608, BS 5351
Size Range
2" ~ 56" (DN50~DN1400)
Temperature Range
Pressure Rating
150LB ~ 2500LB (PN10~PN420)
Operation Type
Turbo, Pneumatic, Hydraulic, Electric

Specification parameters

Name Flange Ball Valve
Size 2" ~ 56" (DN50~DN1400)
Pressure 150LB ~ 2500LB (PN10~PN420)
Temperature -196~350°C
Drive Mode Turbo, Pneumatic, Hydraulic, Electric
Applications Transport water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea, etc., widely used in petroleum refining, long-distance pipeline, chemical, paper, pharmaceutical, water conservancy, electric power, municipal, steel and other fields

Design Specification:

Design Standards API6D, API 608, BS 5351, GB/T 19672, GB/T 21385
Structure length API 6D, ASME B16.10, GB/T 12221
Flange Connection Standard ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Torsion welding standard ASME B16.25, GB/T 12234
Fire Protection Requirements API 6FA, API 607
Pressure test API 598,GB/T 13927, GB/T 26480
Temperature and Pressure Test ASME B16.34, GB/T 12224

Product Introduction:

Flange ball valves have soft-sealed ball valves and hard-sealed ball valves, and hard-sealed ball valve seal pairs (ie, seat seal faces and ball seal faces) are paired with metal-to-metal ball valves. The structure of the ball valve is divided into a floating ball type and a fixed ball type, and the connection form is a flange connection, a welded connection and a screw connection. Product seals can be divided into the following two types:

1) One-way seal: It can only be sealed in the specified direction, that is, the sealing direction indicated by the ball valve.

2) Two-way seal: seals in both directions.

How it works

Flange hard seal ball valve, manual cast steel hard seal ball valve body surface adopts advanced spraying technology, through the treatment of various working conditions, the highest hardness can reach HRC78. The seat sealing surface is treated to a maximum hardness of HRC72. The ball and the valve seat are paired and ground, and all sealing areas of the entire sealing surface of the ball valve are precisely ground. Suitable for high temperature and high pressure water, steam, petroleum, coal, fiber, thick and corrosive media, and media with particles. The metal sealing ball valve has a floating ball and a fixed ball. The two metal seat rings are in contact with the spherical surface, and the valve seat ring and the spherical surface are sealed by a uniform spring load acting on the seat ring. Due to the spring load, the auxiliary seal expands to achieve the seal between the valve body and the valve seat. The spring load is sufficient to provide a reliable seal between the valve seat and the ball. Under low pressure conditions, it can be designed between the seat sealing surface and the ball. There is a sealing grease injection system.
